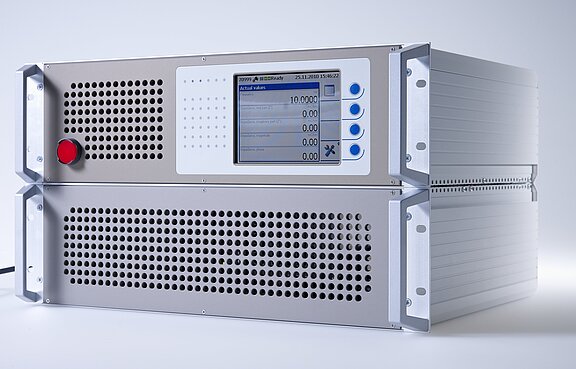

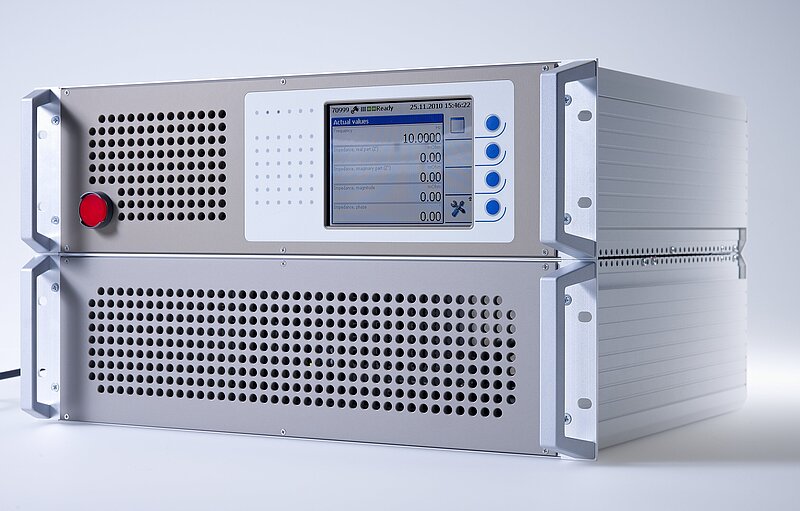

Impedance spectrometer up to 100V

In the applications, it was increasingly necessary to measure the impedance spectrum of test specimens with higher voltages. This concerned both fuel cell stacks and battery modules used for electromobility applications.

In order to meet these requirements, the V06 impedance spectrometer was further developed to be able to directly determine impedance spectra of test specimens with voltages of up to 100 V. This extension enabled precise characterization of high-voltage applications.

The challenges in the development of the V06 were not only in the design of the electronic components, but also in ensuring electrical safety. By implementing suitable safety precautions and standards, it was possible to ensure that the impedance spectrometer can be used safely and reliably in environments with high voltages.
